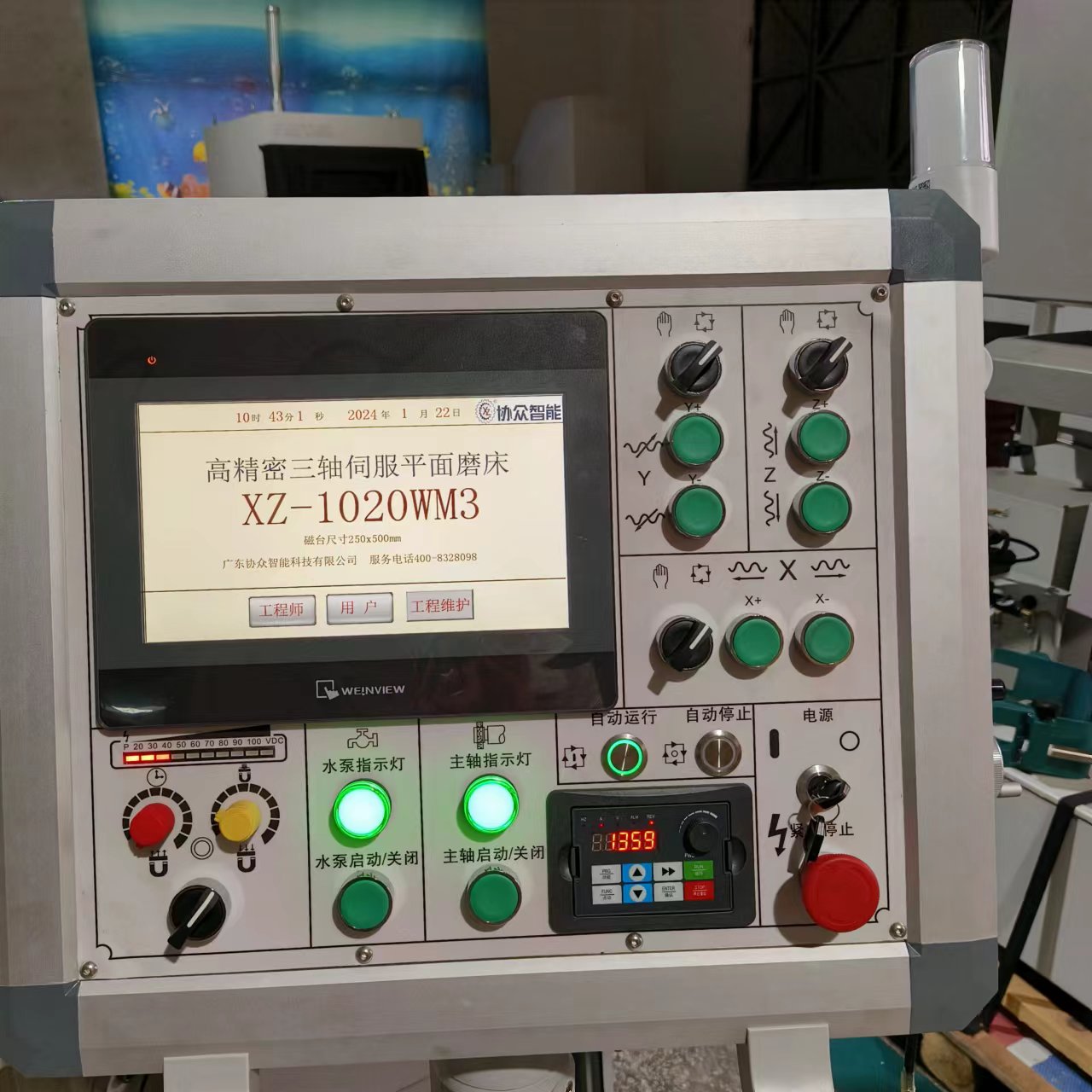

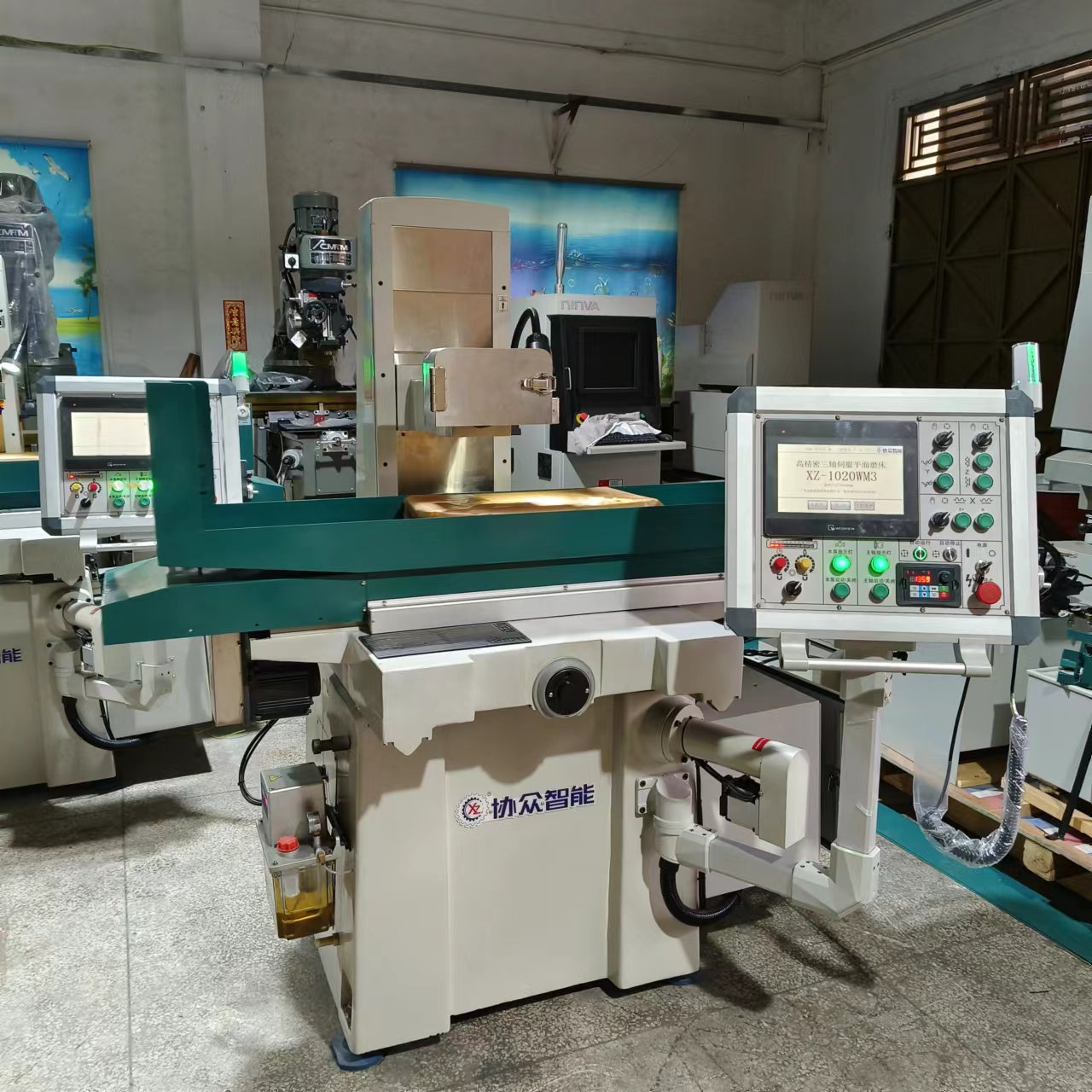

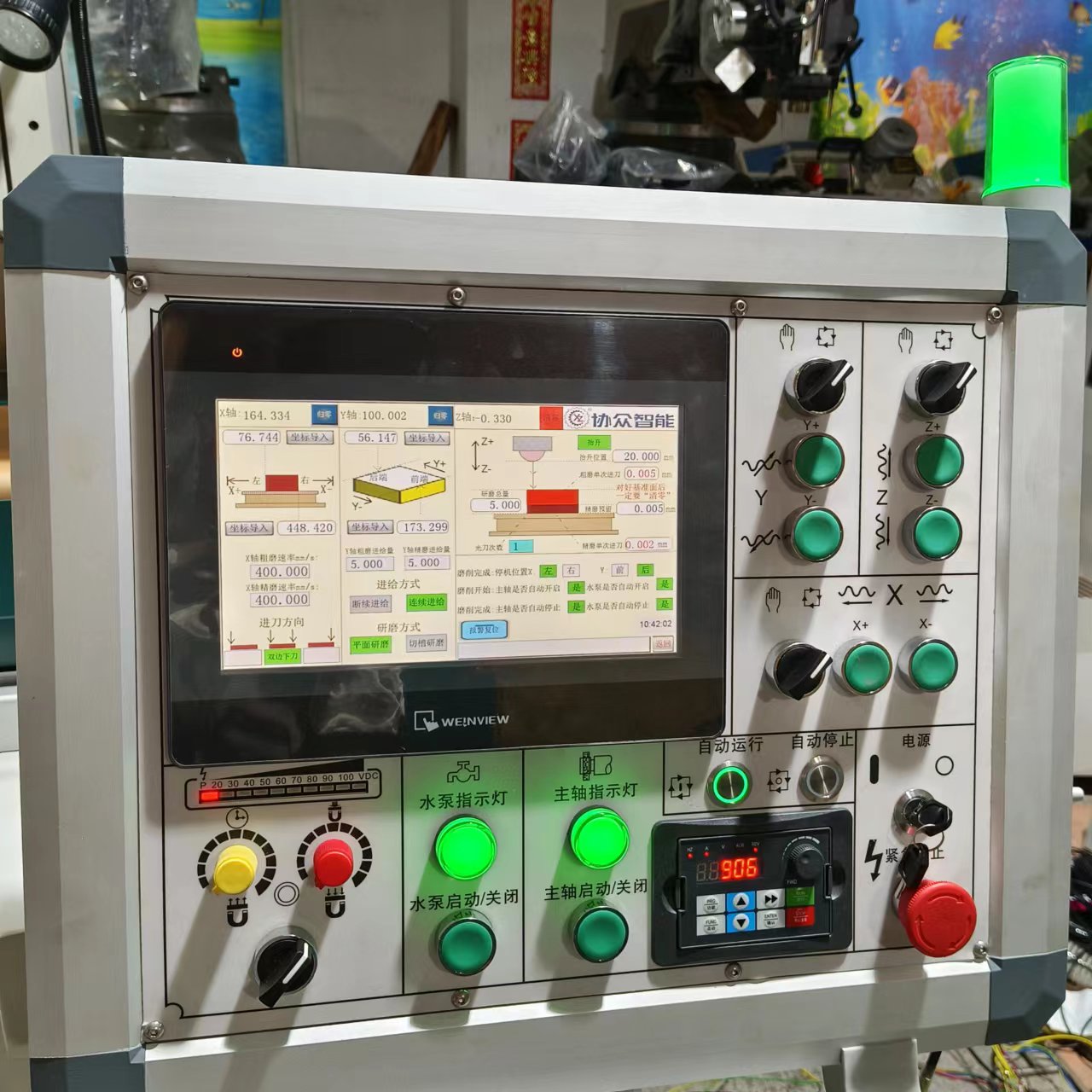

Precision surface grinder 1020 WM3 three-axis servo independently developed a new programmable control system

     Precision surface grinder 1020WM3 3-axis servo independent research and development New CNC grinder, 3-axis automatic, according to customer requirements, Xiezhong independent research and development
Three-axis CNC grinder, gantry grinder.
      The instruction of CNC system of precision forming surface grinder is compiled by programmer according to the material of workpiece, machining requirement, characteristics of machine tool and instruction format (NC language or symbol) stipulated by system. CNC system according to program instructions to servo devices and other functional components to send out operation or termination information to control the various movements of the machine tool. When the machining program of the part ends, the machine automatically stops. Any kind of numerical control machine tool, in its numerical control system if there is no input program instructions, numerical control machine tool can not work. For parts that are prone to machining deformation, due to the deformation that may occur after rough machining, it is necessary to calibrate the shape, so generally speaking, all the rough and finish machining processes must be separated. In summary, when dividing the process, we must depend on the structure and craftsmanship of the parts, the function of the machine tool, the number of CNC machining contents of the parts, the number of installation times and the production organization of the unit. It is also suggested that the principle of process concentration or process dispersion should be determined according to the actual situation, but it must be reasonable. The application principle of Taiwan Jiande grinder is a grinder that uses centerless grinding method to grind the rotating surface of workpiece, usually referred to as centerless cylindrical grinder. In centerless cylindrical grinders, the workpiece is not centered and supported, but placed between the grinding wheel and the guide wheel, supported by the pallet and the guide wheel. The grinding wheel is generally installed at the end of the spindle, and the grinding wheel with a width greater than 250 mm is installed in the middle of the spindle. The grinding wheel width can reach 900 mm. The grinding wheel rotates at high speed for grinding, and the guide wheel rotates in the same direction at a slower speed to drive the workpiece to rotate for circular feed. During through-grinding, axial feed is realized by adjusting the slight inclination angle of the guide shaft axis, which is suitable for grinding slender cylindrical workpieces, short shafts without center holes and sleeve workpieces. Surface grinder safety operation specifications:
      (1) Before the surface grinder officially works, it is first airlifted for a few minutes to check whether the operation of each part is normal.
      (2) When inspecting, loading and unloading the workpiece, and repairing the equipment, the grinding wheel should be withdrawn from the workpiece.
      (3) Non-processed items cannot be placed on the workbench, workpiece and magnetic table.
      (4) When the grinding wheel is close to the workpiece, it cannot be fed quickly to prevent the phenomenon of collision.
      (5), operators operating equipment to concentrate on attention, concentrate on work.
      (6), after the end of the work, to carry out the finishing work, in accordance with the requirements of the provisions, equipment but also for daily maintenance work.
